Trust the sound
Five is the new brand from New York City, USA. Created by the team car audio enthusiasts grew up on the world famous styles of American music Hip-Hop, R&B, Soul, Fusion

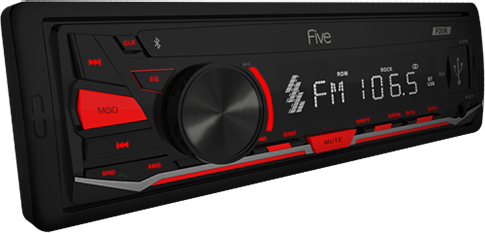

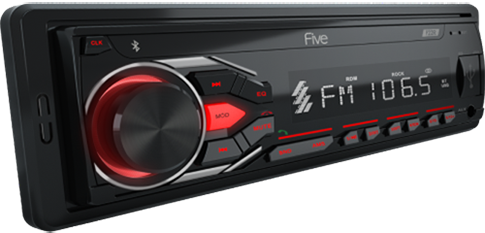

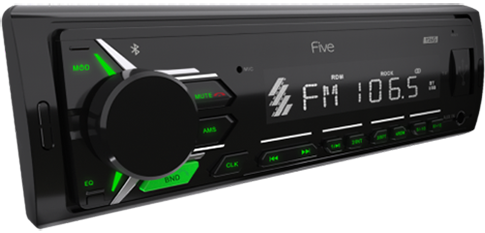

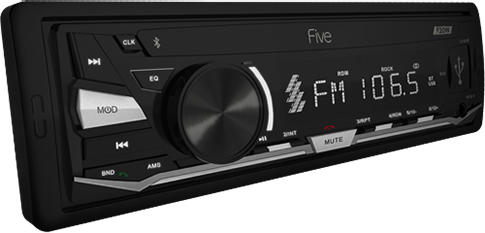

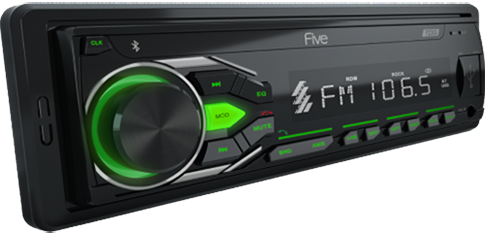

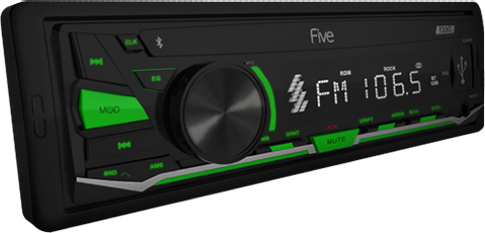

Product
App control
Mobile applications FIVE SOUNDS for Android and FIVE CONTROL for iOS are designed for wireless control of FIVE car radios equiped with a BT module from your mobile device. The FIVE SOUNDS app allows you to control music playback, switch signal sources (FM tuner, BT music, USB, AUX, microSD), change the sound settings of the FIVE radio.
Usb input
Aux input
Balance
Bt music
Frequencies

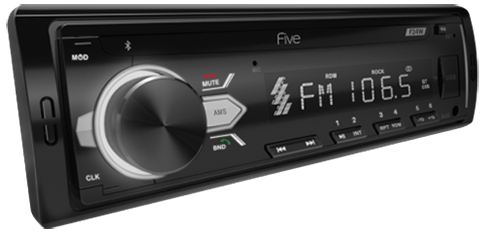

No CD Mechanism!
Our car receivers without a CD mechanism are ideal for people who take their music with them digitally. These units can play digital audio files directly from microSD Cards*, USB Flash drives*, and connect with external devices such as your Smartphone thru the Aux input.
Aux Input
The Aux Input allows you to connect to the audio output of an external device such as an MP3 Player or Smartphone so you can enjoy your music through your system.
Built-in Preset EQ
The built-in, Preset EQ allows you to chose from preset EQ curves for a variety of music styles such as Rock or POP.
ID3 TAG
ID3 Tag allows the audio file to store and display additional data such as title, artist, album, track number and more.
Pre-Amp Output
This units Pre-Amp outputs let you expand your system by adding up to 2 amps and/or signal processors.
USB/microSD Playback
The USB port supports a USB flash drive up to 32 GB as well as microSD slot supports microSD cards. Both can be used for music listening.
Radio
Operating frequency: FM 87.5 - 108 MHz
The number of memory cells for storing
tuned radio stations 18
Sensitivity (30 dB): 15 dB
Reflection Ratio: 40 dB
Signal to Noise Ratio: 65dB
Frequency response: 30 Hz-15 kHz
Media player
Supports flash cards microSD, USB: no more than 32 GB. File System: FAT16/FAT32
Types of playable files: MP3/WMA/WAVE/FLAC
Support ID3 tags encoded in ISO-8859-1.
Signal to Noise Ratio: 85dB
Stereo Channel Separation: 80dB
Frequency response: 20Hz-20kHz
AUX
Connector: Mini Jack 3.5 mm.
Maximum input voltage: 1.0V.
Input Impedance: 30 kOhm
BLUETOOTH
Bluetooth mode, support for profiles A2DP, HFP (ver. 4.0)
Maximum output power
(10% distortion coefficient): 4 * 50W.
Tone Control: ± 8dB (low frequencies 100Hz, high frequencies 10kHz).
Speaker impedance: 4-8Ohm/channel.
2RCA stereo audio output.
Supply voltage: DC 12V, "-"on the case.
App control
Mobile applications FIVE SOUNDS for Android and FIVE CONTROL for iOS are designed for wireless control of FIVE car radios equiped with a BT module from your mobile device. The FIVE SOUNDS app allows you to control music playback, switch signal sources (FM tuner, BT music, USB, AUX, microSD), change the sound settings of the FIVE radio.
Usb input
Aux input
Balance
Bt music
Frequencies
No CD Mechanism!
Our car receivers without a CD mechanism are ideal for people who take their music with them digitally. These units can play digital audio files directly from microSD Cards*, USB Flash drives*, and connect with external devices such as your Smartphone thru the Aux input.
Aux Input
The Aux Input allows you to connect to the audio output of an external device such as an MP3 Player or Smartphone so you can enjoy your music through your system.
Built-in Preset EQ
The built-in, Preset EQ allows you to chose from preset EQ curves for a variety of music styles such as Rock or POP.
ID3 TAG
ID3 Tag allows the audio file to store and display additional data such as title, artist, album, track number and more.
Pre-Amp Output
This units Pre-Amp outputs let you expand your system by adding up to 2 amps and/or signal processors.
USB/microSD Playback
The USB port supports a USB flash drive up to 32 GB as well as microSD slot supports microSD cards. Both can be used for music listening.
Radio
Operating frequency: FM 87.5 - 108 MHz
The number of memory cells for storing
tuned radio stations 18
Sensitivity (30 dB): 15 dB
Reflection Ratio: 40 dB
Signal to Noise Ratio: 65dB
Frequency response: 30 Hz-15 kHz
Media player
Supports flash cards microSD, USB: no more than 32 GB. File System: FAT16/FAT32
Types of playable files: MP3/WMA/WAVE/FLAC
Support ID3 tags encoded in ISO-8859-1.
Signal to Noise Ratio: 85dB
Stereo Channel Separation: 80dB
Frequency response: 20Hz-20kHz
AUX
Connector: Mini Jack 3.5 mm.
Maximum input voltage: 1.0V.
Input Impedance: 30 kOhm
BLUETOOTH
Bluetooth mode, support for profiles A2DP, HFP (ver. 4.0)
Maximum output power
(10% distortion coefficient): 4 * 50W.
Tone Control: ± 8dB (low frequencies 100Hz, high frequencies 10kHz).
Speaker impedance: 4-8Ohm/channel.
2RCA stereo audio output.
Supply voltage: DC 12V, "-"on the case.
App control
Mobile applications FIVE SOUNDS for Android and FIVE CONTROL for iOS are designed for wireless control of FIVE car radios equiped with a BT module from your mobile device. The FIVE SOUNDS app allows you to control music playback, switch signal sources (FM tuner, BT music, USB, AUX, microSD), change the sound settings of the FIVE radio.
Usb input
Aux input
Balance
Bt music
Frequencies
No CD Mechanism!
Our car receivers without a CD mechanism are ideal for people who take their music with them digitally. These units can play digital audio files directly from microSD Cards*, USB Flash drives*, and connect with external devices such as your Smartphone thru the Aux input.
Aux Input
The Aux Input allows you to connect to the audio output of an external device such as an MP3 Player or Smartphone so you can enjoy your music through your system.
Built-in Preset EQ
The built-in, Preset EQ allows you to chose from preset EQ curves for a variety of music styles such as Rock or POP.
ID3 TAG
ID3 Tag allows the audio file to store and display additional data such as title, artist, album, track number and more.
Pre-Amp Output
This units Pre-Amp outputs let you expand your system by adding up to 2 amps and/or signal processors.
USB/microSD Playback
The USB port supports a USB flash drive up to 32 GB as well as microSD slot supports microSD cards. Both can be used for music listening.
Radio
Operating frequency: FM 87.5 - 108 MHz
The number of memory cells for storing
tuned radio stations 18
Sensitivity (30 dB): 15 dB
Reflection Ratio: 40 dB
Signal to Noise Ratio: 65dB
Frequency response: 30 Hz-15 kHz
Media player
Supports flash cards microSD, USB: no more than 32 GB. File System: FAT16/FAT32
Types of playable files: MP3/WMA/WAVE/FLAC
Support ID3 tags encoded in ISO-8859-1.
Signal to Noise Ratio: 85dB
Stereo Channel Separation: 80dB
Frequency response: 20Hz-20kHz
AUX
Connector: Mini Jack 3.5 mm.
Maximum input voltage: 1.0V.
Input Impedance: 30 kOhm
BLUETOOTH
Bluetooth mode, support for profiles A2DP, HFP (ver. 4.0)
Maximum output power
(10% distortion coefficient): 4 * 50W.
Tone Control: ± 8dB (low frequencies 100Hz, high frequencies 10kHz).
Speaker impedance: 4-8Ohm/channel.
2RCA stereo audio output.
Supply voltage: DC 12V, "-"on the case.
App control
Mobile applications FIVE SOUNDS for Android and FIVE CONTROL for iOS are designed for wireless control of FIVE car radios equiped with a BT module from your mobile device. The FIVE SOUNDS app allows you to control music playback, switch signal sources (FM tuner, BT music, USB, AUX, microSD), change the sound settings of the FIVE radio.
Usb input
Aux input
Balance
Bt music
Frequencies
No CD Mechanism!
Our car receivers without a CD mechanism are ideal for people who take their music with them digitally. These units can play digital audio files directly from microSD Cards*, USB Flash drives*, and connect with external devices such as your Smartphone thru the Aux input.
Aux Input
The Aux Input allows you to connect to the audio output of an external device such as an MP3 Player or Smartphone so you can enjoy your music through your system.
Built-in Preset EQ
The built-in, Preset EQ allows you to chose from preset EQ curves for a variety of music styles such as Rock or POP.
ID3 TAG
ID3 Tag allows the audio file to store and display additional data such as title, artist, album, track number and more.
Pre-Amp Output
This units Pre-Amp outputs let you expand your system by adding up to 2 amps and/or signal processors.
USB/microSD Playback
The USB port supports a USB flash drive up to 32 GB as well as microSD slot supports microSD cards. Both can be used for music listening.
Radio
Operating frequency: FM 87.5 - 108 MHz
The number of memory cells for storing
tuned radio stations 18
Sensitivity (30 dB): 15 dB
Reflection Ratio: 40 dB
Signal to Noise Ratio: 65dB
Frequency response: 30 Hz-15 kHz
Media player
Supports flash cards microSD, USB: no more than 32 GB. File System: FAT16/FAT32
Types of playable files: MP3/WMA/WAVE/FLAC
Support ID3 tags encoded in ISO-8859-1.
Signal to Noise Ratio: 85dB
Stereo Channel Separation: 80dB
Frequency response: 20Hz-20kHz
AUX
Connector: Mini Jack 3.5 mm.
Maximum input voltage: 1.0V.
Input Impedance: 30 kOhm
BLUETOOTH
Bluetooth mode, support for profiles A2DP, HFP (ver. 4.0)
Maximum output power
(10% distortion coefficient): 4 * 50W.
Tone Control: ± 8dB (low frequencies 100Hz, high frequencies 10kHz).
Speaker impedance: 4-8Ohm/channel.
2RCA stereo audio output.
Supply voltage: DC 12V, "-"on the case.
No CD Mechanism!
Our car receivers without a CD mechanism are ideal for people who take their music with them digitally. These units can play digital audio files directly from microSD Cards*, USB Flash drives*, and connect with external devices such as your Smartphone thru the Aux input.
Aux Input
The Aux Input allows you to connect to the audio output of an external device such as an MP3 Player or Smartphone so you can enjoy your music through your system.
Built-in Preset EQ
The built-in, Preset EQ allows you to chose from preset EQ curves for a variety of music styles such as Rock or POP.
ID3 TAG
ID3 Tag allows the audio file to store and display additional data such as title, artist, album, track number and more.
Pre-Amp Output
This units Pre-Amp outputs let you expand your system by adding up to 2 amps and/or signal processors.
USB/microSD Playback
The USB port supports a USB flash drive up to 32 GB as well as microSD slot supports microSD cards. Both can be used for music listening.
Radio
Operating frequency: FM 87.5 - 108 MHz
The number of memory cells for storing
tuned radio stations 18
Sensitivity (30 dB): 15 dB
Reflection Ratio: 40 dB
Signal to Noise Ratio: 65dB
Frequency response: 30 Hz-15 kHz
Media player
Supports flash cards microSD, USB: no more than 32 GB. File System: FAT16/FAT32
Types of playable files: MP3/WMA/WAVE/FLAC
Support ID3 tags encoded in ISO-8859-1.
Signal to Noise Ratio: 85dB
Stereo Channel Separation: 80dB
Frequency response: 20Hz-20kHz
AUX
Connector: Mini Jack 3.5 mm.
Maximum input voltage: 1.0V.
Input Impedance: 30 kOhm
BLUETOOTH
Bluetooth mode, support for profiles A2DP, HFP (ver. 4.0)
Maximum output power
(10% distortion coefficient): 4 * 50W.
Tone Control: ± 8dB (low frequencies 100Hz, high frequencies 10kHz).
Speaker impedance: 4-8Ohm/channel.
2RCA stereo audio output.
Supply voltage: DC 12V, "-"on the case.

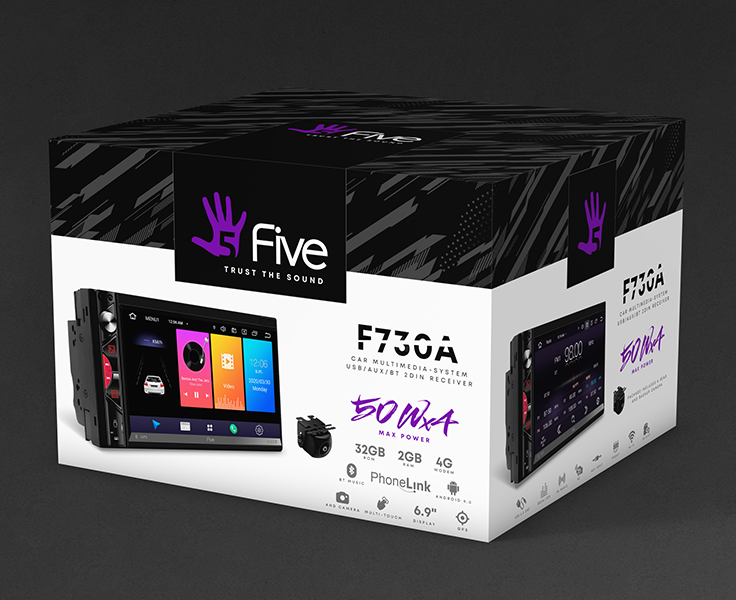

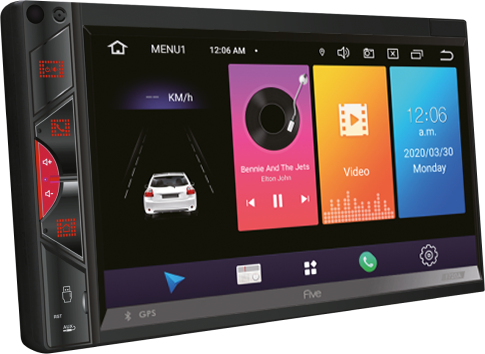

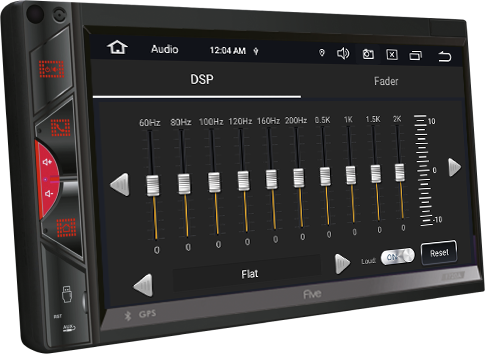

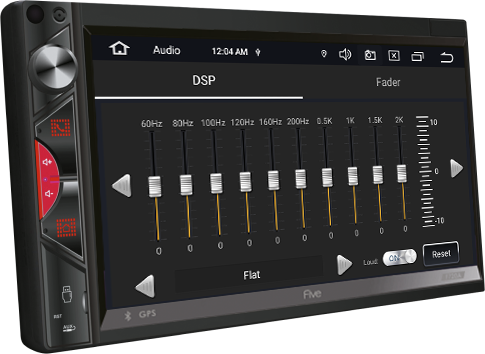

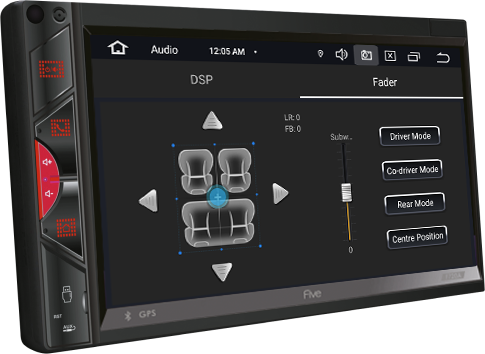

OS: Android 9.0
Cortex A7 Quad Core 1.6GHz
RAM DDR3 2GB
Internal memory: 32G
Capacitive LCD 6,9"
Display resolution 1024X600 pix. 24-bit color rendering
FM frequency range 87.5 - 108 MHz
Usable sensitivity (20 dB) 15 dB
Signal-to-noise ratio, not less than 48 dB
Frequency Response (+/- 3dB) 30Hz-15KHz
Stereo separation (at 1 kHz) 30 dB
Frequency range AM 522 - 1620 kHz
Usable sensitivity (20 dB) 25 dB
Number of FM / AM memories 18 + 12
USB 2.0 with OTG / AUX support
Easy Connection Support
Support for 4G / LTE modems (built-in)
Built-in WiFi / GPS / BT (ver.4.2) with support for A2DP, AVRCP protocols
FullHD 1080p support
Video formats WMV / MPEG4 / MOV MPEG1 / 2, H.264 codecs, DivX, etc.
Audio formats MP3 / WMA / WAVE / FLAC / AAC, etc.
Graphic formats JPG / BMP / PNG, etc.
Maximum output power 50Wx4
Frequency Response (+/- 3dB): 20Hz-20KHz
Recommended speaker impedance 4-8 ohms
Power requirement 10.8 - 14.8V, negative ground
Maximum current consumption 7.5 A

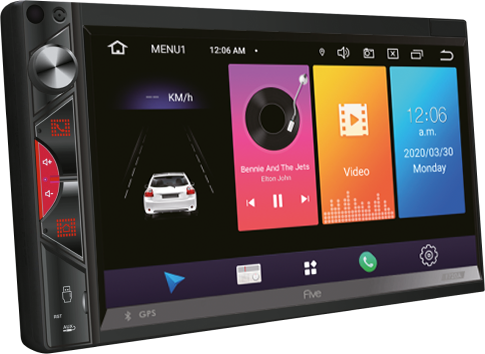

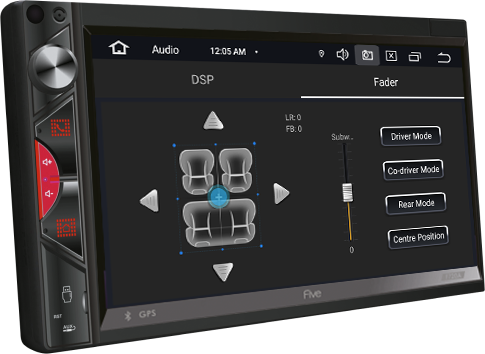

OS: Android 9.0
Cortex A7 Quad Core 1.6GHz
RAM DDR3 2GB
Internal memory: 32G
Capacitive LCD 6,9"
Display resolution 1024X600 pix. 24-bit color rendering
FM frequency range 87.5 - 108 MHz
Usable sensitivity (20 dB) 15 dB
Signal-to-noise ratio, not less than 48 dB
Frequency Response (+/- 3dB) 30Hz-15KHz
Stereo separation (at 1 kHz) 30 dB
Frequency range AM 522 - 1620 kHz
Usable sensitivity (20 dB) 25 dB
Number of FM / AM memories 18 + 12
USB 2.0 with OTG / AUX support
Easy Connection Support
Support for 4G / LTE modems (built-in)
Built-in WiFi / GPS / BT (ver.4.2) with support for A2DP, AVRCP protocols
FullHD 1080p support
Video formats WMV / MPEG4 / MOV MPEG1 / 2, H.264 codecs, DivX, etc.
Audio formats MP3 / WMA / WAVE / FLAC / AAC, etc.
Graphic formats JPG / BMP / PNG, etc.
Maximum output power 50Wx4
Frequency Response (+/- 3dB): 20Hz-20KHz
Recommended speaker impedance 4-8 ohms
Power requirement 10.8 - 14.8V, negative ground
Maximum current consumption 7.5 A

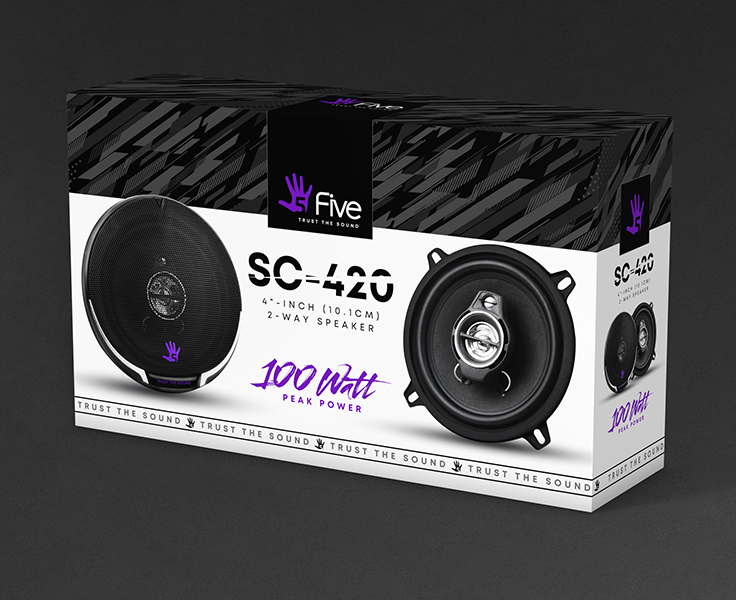

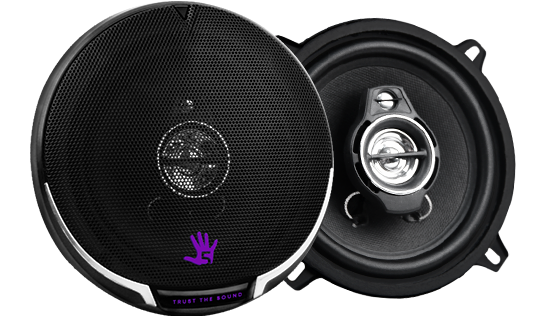

4-inch (10.1cm) 2-way coaxial speaker
Paper cone with butyl rubber edge
Stamped steel basket
30mm Mylar tweeter
Frequency response: 80Hz ~20 kHz
Sensitivity: 89dB/W/m
Magnet: Φ60 x 10mm (3.8 oz)
Voice coil: Φ25mm KSV
Nominal Impedance: 4 ohms
Rated power (RMS): 30 W
Peak power (PMPO): 100 W
Mounting depth: 43mm (1.7”)
Diameter installation hole: 95mm (3.74”)

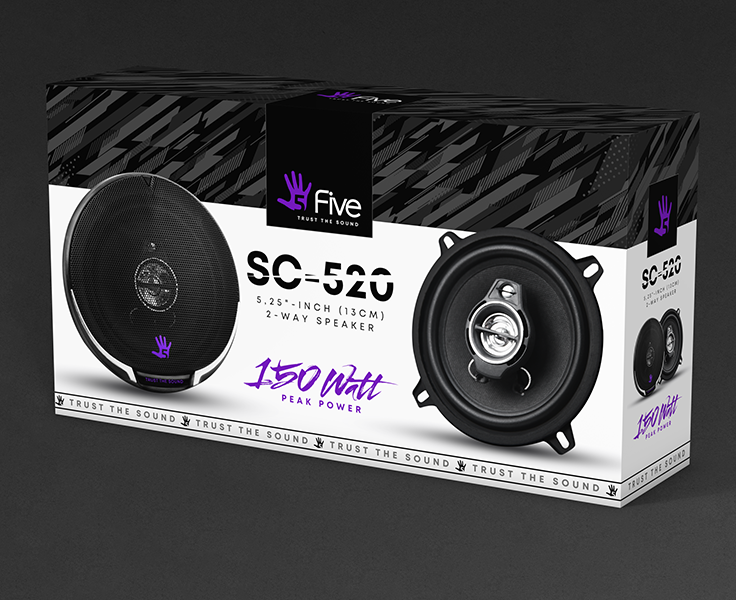

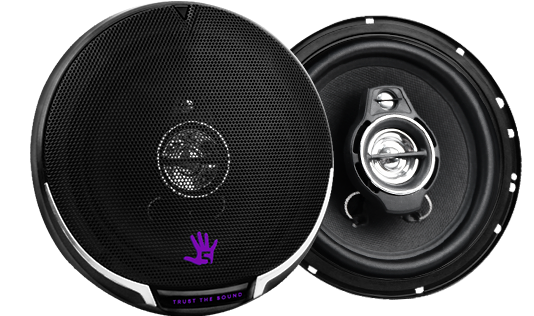

5,25-inch (13.3cm) 2-way coaxial speaker
Paper cone with butyl rubber edge,
Stamped steel basket,
30mm Mylar tweeter,
Frequency response: 75Hz ~ 20 kHz,
Sensitivity: 88dB/W/m
Magnet: Ф70 x 10mm (5.4 oz)
Voice coil: 25mm KSV,
Nominal Impedance: 4 ohms
Rated power (RMS): 50 W
Peak power (PMPO): 150 W
Mounting depth: 44mm (1.73”)
Diameter installation hole: 117mm (4.6”)

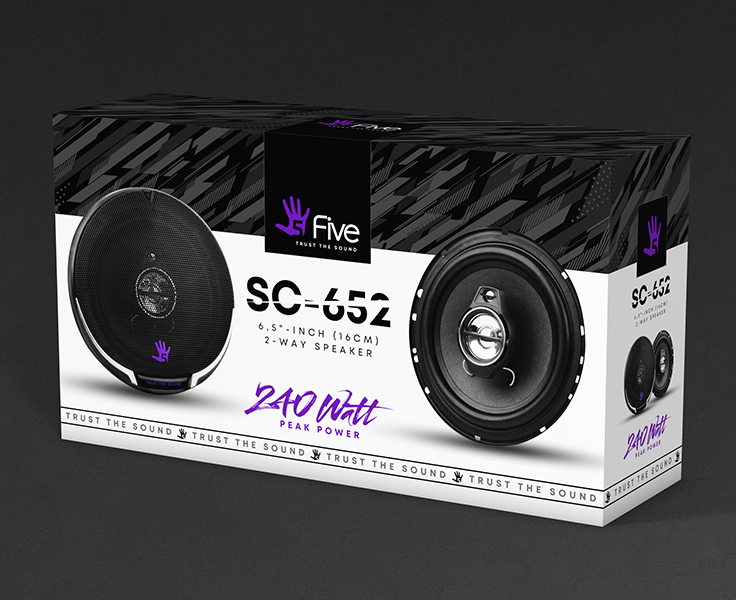

6.5-inch (16.5cm) 2-way coaxial speaker
Paper cone with butyl rubber edge,
Stamped steel basket,
30mm Mylar tweeter,
Frequency response: 70Hz ~ 20 kHz,
Sensitivity: 88dB/W/m
Magnet: Φ80 x 12mm (8 oz)
Voice coil: Φ25mm KSV,
Nominal Impedance: 4 ohms
Rated power (RMS): 80 W
Peak power (PMPO): 240 W
Mounting depth: 54mm (2.1”)
Diameter installation hole: 140mm (5.51”)

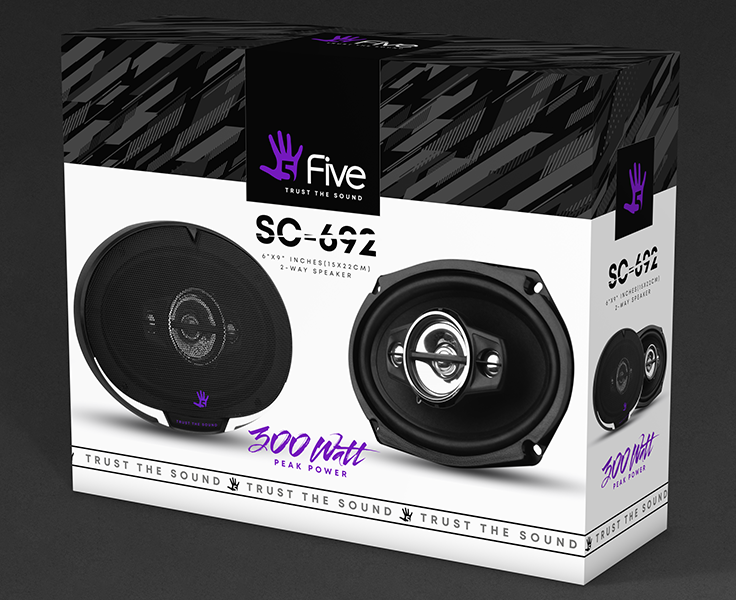

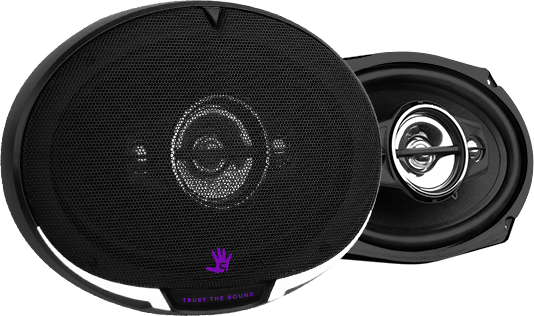

6 x 9 (15.2*22.8cm) inches 2-way coaxial speaker
Paper cone with butyl rubber edge,
Stamped steel basket,
58mm Mylar cone midrange,
Frequency response: 65Hz ~ 20 kHz,
Sensitivity: 88dB/W/m
Magnet: Ø100 x 18mm (18 oz)
Voice coil: Ø25mm KSV
Nominal Impedance: 4 ohms
Rated power (RMS): 100 W
Peak power (P.M.P.O): 300 W
Insallation depth: 76mm (3”)
Diameter installation hole: 217*148mm (8.54*5.82”)

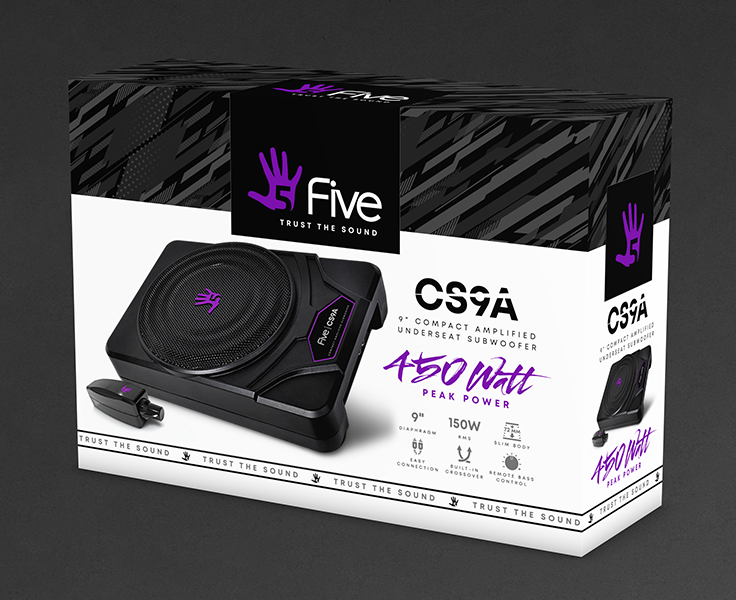

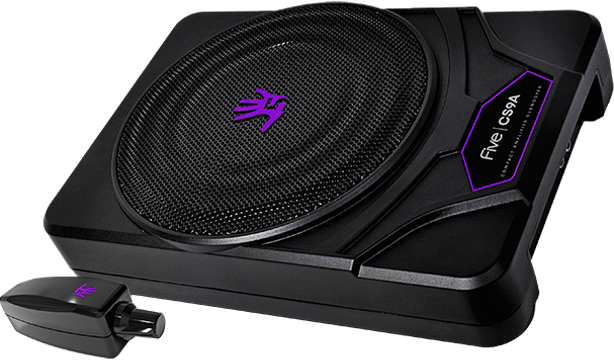

Sound
Power Output (RMS): 150 WattsFrequency Response: 34-400Hz
Woofer
Diaphragm Size (Nominal): 9 inchDiaphragm Material: Polypropylene
Surround: Rubber
Amplifier
Power Output (RMS): 150 wattsLow Pass Crossover: 30-150Hz
Input Sensitivity: 0.1-5.0V (RCA Input)
Speaker Level Input: 0.5-10.0V
Accessories
Remote Knob: Cable Length 5MAdjustment Range: 0 to -30dB

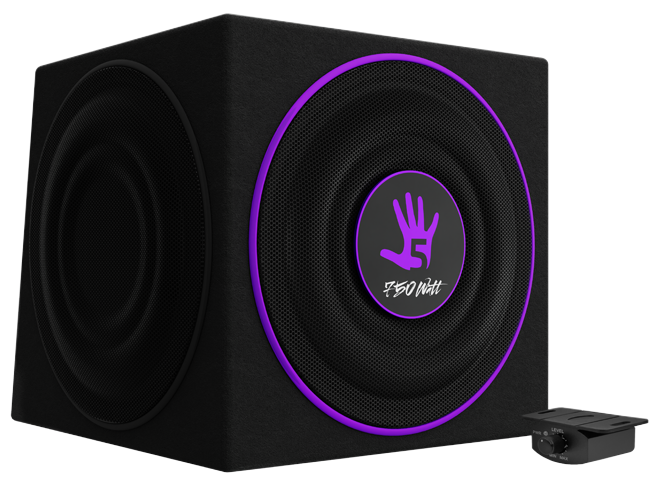

Sound
Power Output (RMS): 150 WattsFrequency Response: 40-3000Hz
Woofer
Diaphragm Size (Nominal): 8 inchDiaphragm Material: Paper
Surround: Rubber
Amplifier
Power Output (RMS): 150 wattsLow Pass Crossover: 50-200Hz
Input Sensitivity: 0.1-5.0V (RCA Input)
Accessories
Remote Knob: Cable Length 5MAdjustment Range: 0 to -30dB

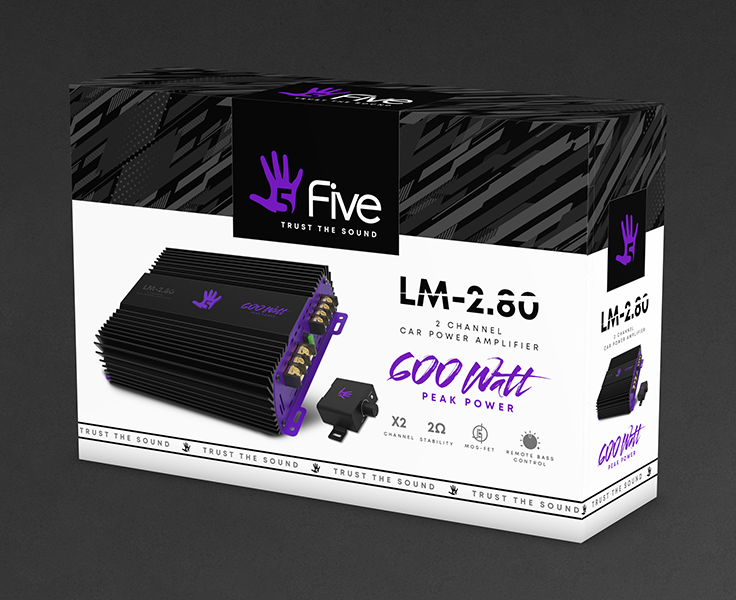

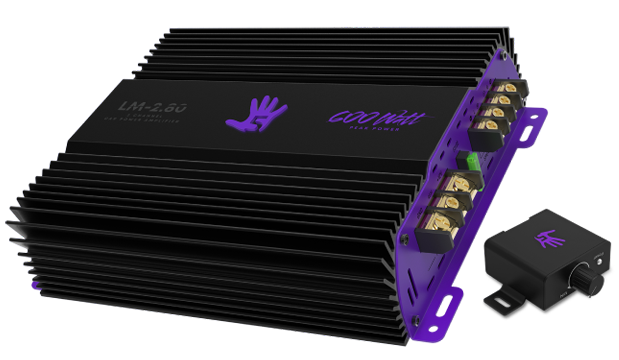

Number of channels: 2/1
Rated power @ 4 Ohm, STEREO: 80W x 2
Rated power @ 4 ohms, bridged MONO: 260W x 1
Rated power @ 2 ohms, STEREO: 130W x 2
Maximum power @ 40m: 130W х 2
Peak power total: 600W
Frequency Response Range: 10Hz ~ 30 kHz
Harmonic Distortion (THD) @ 1kHz (40m): 0.15%
Low pass filter: 30 - 300 Hz
High pass filter: 30Hz – 8 kHz
Input sensitivity: 200mV-8V
Channel separation: >45 dB
Signal to noise ratio: ≥96dB
Overvoltage / undervoltage protection: > 18 / <9
Bass Boost remote control (0 - 18dB)
Crossover switch: LPF-FULL-HPF
Bass Boost switch (step): 0-6-12 dB
Fuse Rating: 30A
Dimensions, inches: 7.48 x 2.28 x 8.58

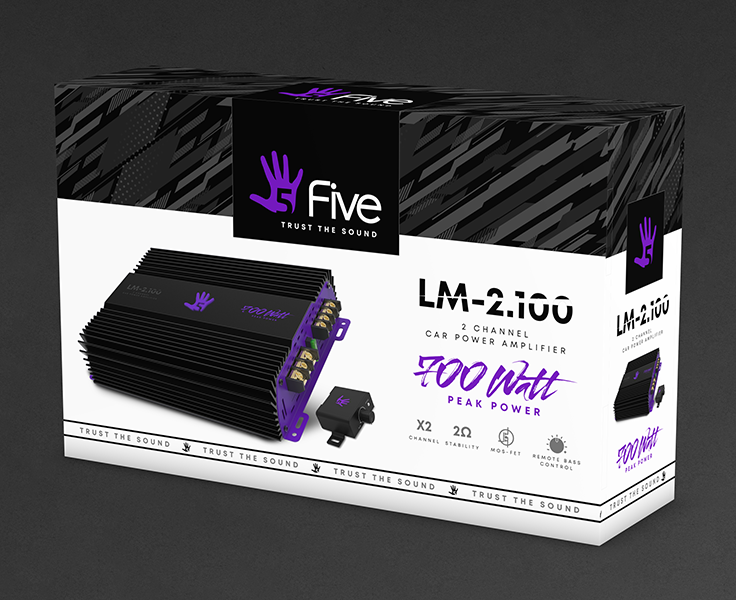

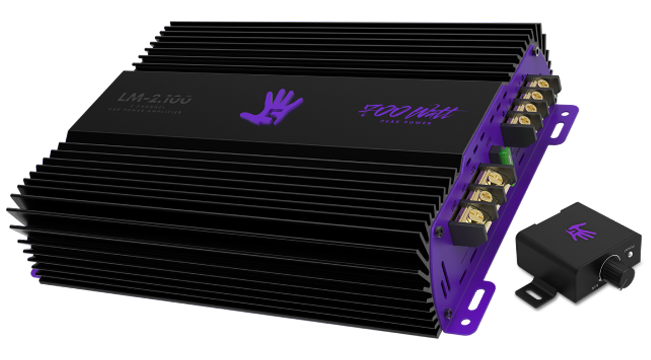

Number of channels: 2/1
Rated power @ 4 Ohm, STEREO: 100W x 2
Rated power @ 4 ohms, bridged MONO: 300W x 1
Rated power @ 2 ohms, STEREO: 150W x 2
Maximum power @ 40m: 150W х 2
Peak power total: 700W
Frequency Response Range: 10Hz ~ 30 kHz
Harmonic Distortion (THD) @ 1kHz (40m): 0.15%
Low pass filter: 30 - 300 Hz
High pass filter: 30Hz – 8 kHz
Input sensitivity: 200mV-8V
Channel separation: >45 dB
Signal to noise ratio: ≥96dB
Overvoltage / undervoltage protection: > 18 / <9
Bass Boost remote control (0 - 18dB)
Crossover switch: LPF-FULL-HPF
Bass Boost switch (step): 0-6-12 dB
Fuse Rating: 2x20A
Dimensions, inches: 7.48 x 2.28 x 9.37”

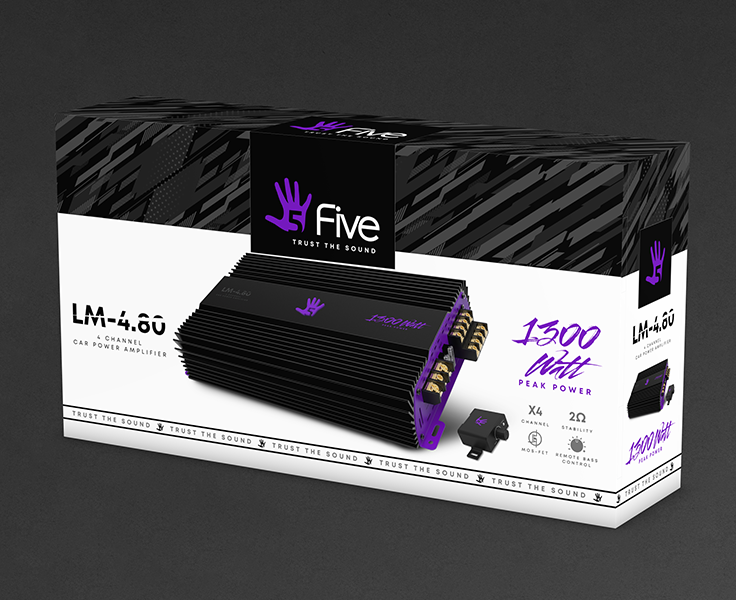

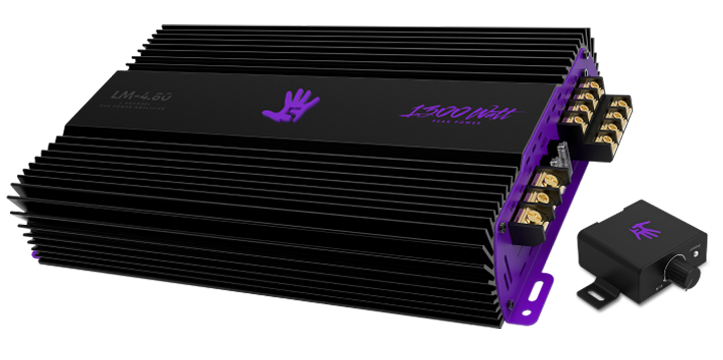

Number of channels: 4/3/2
Rated power @ 4 Ohm, STEREO: 80W x 4
Rated power @ 4 ohms, bridged MONO: 260W x 2
Rated power @ 2 ohms, STEREO: 130W x 4
Maximum power @ 40m: 130W х 4
Peak power total: 1300W
Frequency Response Range: 10Hz ~ 30 kHz
Harmonic Distortion (THD) @ 1kHz (40m): 0.15%
Low pass filter: 30 - 300 Hz
High pass filter: 30Hz – 8 kHz
Input sensitivity: 200mV-8V
Channel separation: >45 dB
Signal to noise ratio: ≥92dB
Overvoltage / undervoltage protection: > 18 / <9
Bass Boost remote control (0 - 18dB)
Crossover switch: LPF-FULL-HPF
Bass Boost switch (step): 0-6-12 dB
Fuse Rating: 2x20A
Dimensions, inches: 7.48 x 2.28 x 11.73”

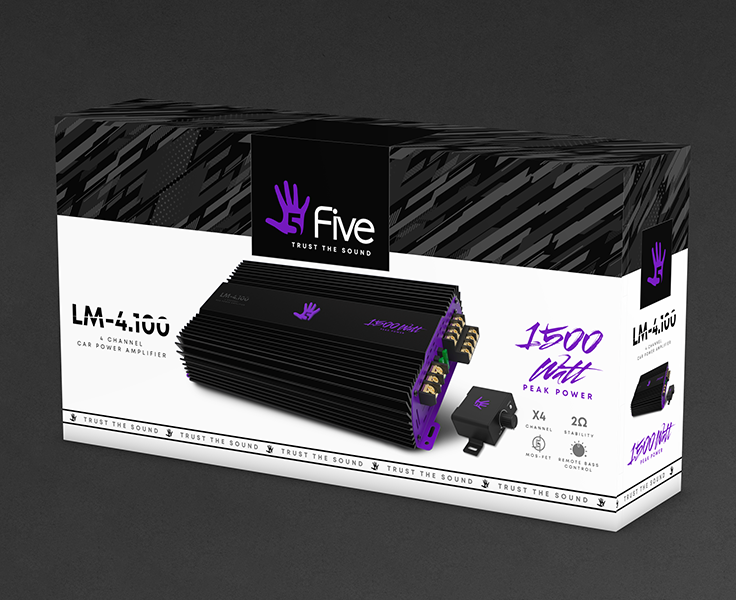

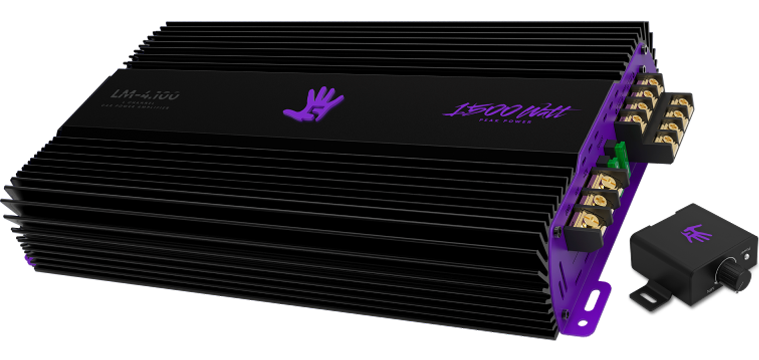

Number of channels: 4/3/2
Rated power @ 4 Ohm, STEREO: 100W x 4
Rated power @ 4 ohms, bridged MONO: 300W x 2
Rated power @ 2 ohms, STEREO: 150W x 4
Maximum power @ 40m: 150W х 4
Peak power total: 1500W
Frequency Response Range: 10Hz ~ 30 kHz
Harmonic Distortion (THD) @ 1kHz (40m): 0.15%
Low pass filter: 30 - 300 Hz
High pass filter: 30Hz – 8 kHz
Input sensitivity: 200mV-8V
Channel separation: >45 dB
Signal to noise ratio: ≥92dB
Overvoltage / undervoltage protection: > 18 / <9
Bass Boost remote control (0 - 18dB)
Crossover switch: LPF-FULL-HPF
Bass Boost switch (step): 0-6-12 dB
Fuse Rating: 2x20A
Dimensions, inches: 7.48 x 2.28 x 12.51”

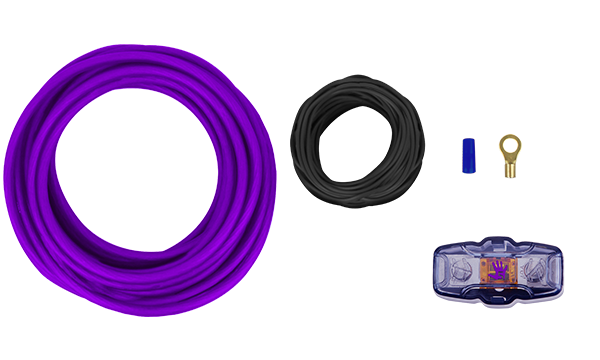

Power cable, length 16.5ft, 8AWG True spec, Soft Touch transparent frosted violet color,
Cable structure: 7*27/0.20CCA, outer diameter: 6.5.
Cable material - copper-clad aluminum (CCA).
Remote cable, length 16.5ft, 18AWG True spec, black color,
Cable structure: 28/0.15CCA, outer diameter: 2.4.
Mini ANL fuse holder with smoke color cover including Mini ANL 40A fuse.
Installation hardware: ring terminals 8AWG - 1pc.
Operating temperature range: - 86 °F ~ + 149 °F degrees

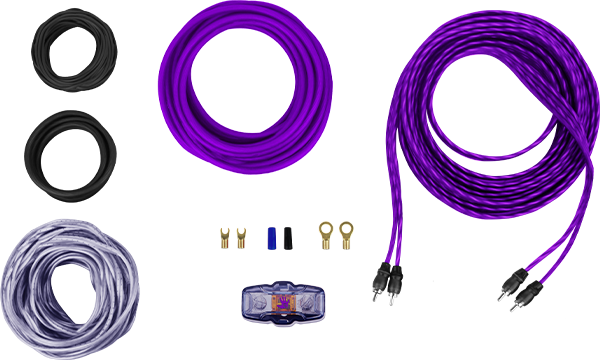

Power cable, length 16.5ft, 8AWG, Soft Touch transparent frosted violet color,
Cable structure: 7*27/0.20CCA, outer diameter: 6.5.
Ground cable, length 3.3ft, 8AWG, Soft Touch transparent frosted black color,
Cable structure: 7*27/0.20CCA, outer diameter: 6.5.
Speaker wire, length 33ft, 15AWG True spec, Solid white color, 2*30/0.20CCA, outer diameter: 3.0*6.0
Cable material - copper-clad aluminum (CCA).
2 channel interconnect cable, Ultra flexible Soft Touch frosted transparent violet PVC,
Cable structure: 2*[2*(10/0.12CCS+frosted Soft Touch PVC)], outer diameter: 3.8+3.8+3.8+3.8mm, length 16,4ft.
Remote cable, length 16.5ft, 18AWG True spec, black color,
Cable structure: 28/0.15CCA, outer diameter: 2.4.
Gold-plated RCA connectors for the best conductivity.
Signal cable is protected by ultra-flexible silicone heat-resistant Soft Touch insulation.
Cable material - copper-clad aluminum. Made using "twisted pair" technology.
Mini ANL fuse holder with smoke color cover including Mini ANL 40A fuse.

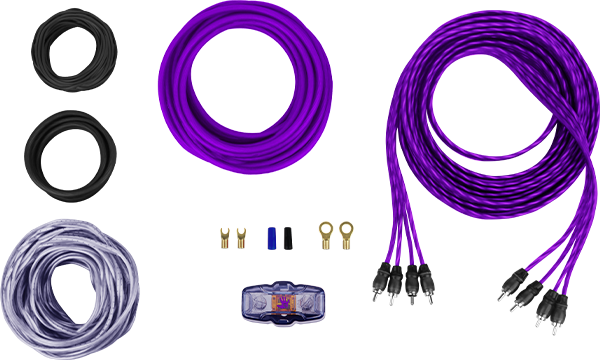

Power cable, length 16.5ft, 8AWG True spec, Soft Touch transparent frosted violet color,
Cable structure: 7*27/0.20CCA, outer diameter: 6.5.
Ground cable, length 3.3ft, 8AWG True spec, Soft Touch transparent frosted black color,
Cable structure: 7*27/0.20CCA, outer diameter: 6.5.
Speaker wire, length 33ft, 15AWG True spec, Solid white color, 2*30/0.20CCA, outer diameter: 3.0*6.0
Cable material - copper-clad aluminum (CCA).
4 channel interconnect cable, Ultra flexible Soft Touch frosted transparent violet color PVC, cable structure: 4*[2*(10/0.12CCS+frosted Soft Touch PVC)], outer diameter: 3.8+3.8+3.8+3.8mm, length 16,4ft.
Remote cable, length 16.5ft, 18AWG True spec, black color,
Cable structure: 28/0.15CCA, outer diameter: 2.4.
Gold-plated RCA connectors for the best conductivity.
Signal cable is protected by ultra-flexible silicone heat-resistant Soft Touch insulation.
Cable material - copper-clad aluminum. Made using "twisted pair" technology.
Mini ANL fuse holder with smoke color cover including Mini ANL 60A fuse.
Installation hardware: ring terminals 8AWG - 2pcs, spade terminals 8AWG -2pcs, cable ties length 6 inches - 10pcs.
Operating temperature range: - 86 °F ~ + 149 °F degrees
Contact
42 West street, Suite 3/20, Brooklyn NY, 11222
Phone: +1 585 209-5352 Mail: dealer@five-usa.com
